Product Design (2020.06)

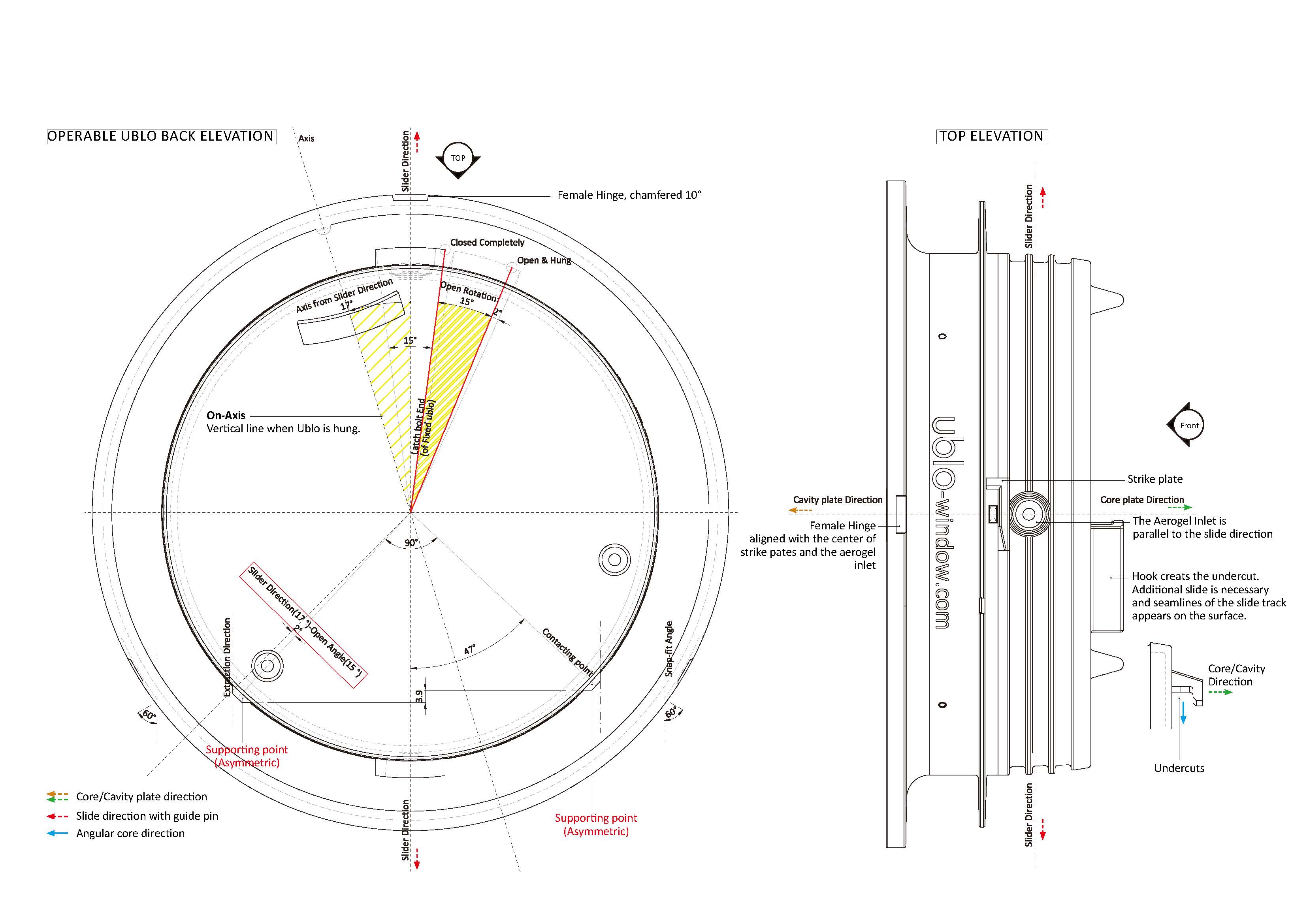

Since the direction of slider extraction (17° from on-axis)
differs from the direction of closed state(15° from on-axis),
there are asymmetric-rotated components of supporting points
in ambiguous angle(2°) for minimizing the number of undercuts.
